Steel Valve Locking Type Quick Release Pneumatic Connector LSQ-HX In Brass / Steel

  • 1
  • 2

Brand Name : SONGQIAO

Model Number : LSQ-HX

Place of Origin : Ningbo,China(Mainland)

Supply Ability : 50,000pcs/day, according the capacity of the assbemly workshop

Delivery Time : within 30 days or as per customers' requirement.

Packaging Details : standard exporting package or as per customers' requests.

MOQ : negotiable

Price : negotiable

Standard : CHINESE STANDARD

WP : 1.0Mpa

Material : Stee、Brass

WT : -20C to +120C

Contact Now

LSQ-HX Steel Valve Locking Type Pneumatic couplings in Brass or Steel

Descripton:

LSQ-HX STEEL VALVE LOCKING TYPE PNEUMATIC QUICK COUPLING(STEEL BRASS)
→ Features: Single hand operation, it use difference color to distinguish the medium. Color plated is used for air and water. Red coupling is used for acetylene; green coupling is used for oxygen; blue coupling is used for carbon dioxide. It is widely used in Germany market.
→ Advantages: Single hand operation. Steel valve locking system.
→ Application: Ship manufacturing, repairing and other industry system need to avoid wrong connecting.
→ Working Pressure: 1.0Mpa
→ Working Temperature: -20℃ to +120℃

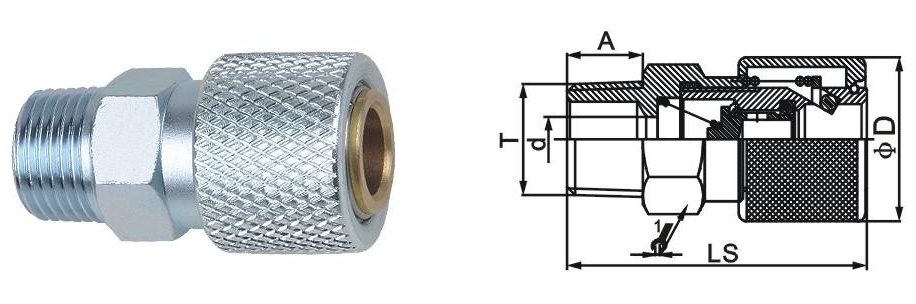

Steel Valve Locking Type Quick Release Pneumatic Connector LSQ-HX In Brass / Steel

PARTNO. LS ￠D HEX1 A T d
LSQ-HX-04SF 64.8 36 32 14 G1/2 ￠12
LSQ-HX-06SF 66 36 32 16 G3/4 ￠12


Steel Valve Locking Type Quick Release Pneumatic Connector LSQ-HX In Brass / Steel

PARTNO. LS ￠D HEX1 A T d
LSQ-HX-04SM 66 36 32 14 ZG1/2 ￠12
LSQ-HX-06SM 67.8 36 32 16 ZG3/4 ￠12


Steel Valve Locking Type Quick Release Pneumatic Connector LSQ-HX In Brass / Steel

PARTNO. LS ￠D HEX1 A ￠T d
LSQ-HX-04SH 89.5 36 34 38 16 ￠12
LSQ-HX-06SH 89.5 36 34 38 21 ￠12


Steel Valve Locking Type Quick Release Pneumatic Connector LSQ-HX In Brass / Steel

PARTNO. LP A C CP ￠T d
LSQ-HX-03PH 74 26 37 19.5 14 ￠9
LSQ-HX-04PH 75 26 38 19.5 16 ￠10
LSQ-HX-06PH 75 26 38 24 21 ￠10


Steel Valve Locking Type Quick Release Pneumatic Connector LSQ-HX In Brass / Steel

PARTNO. LS ￠D HEX1 A T d
LSQ-HX-O2-SM 52.4 30.4 24 14 G1/2 ￠8.3


Steel Valve Locking Type Quick Release Pneumatic Connector LSQ-HX In Brass / Steel

PARTNO. LP C CP A ￠T d
LSQ-HX-O2-PH 56 20.5 ￠16 30 9 ￠5


Steel Valve Locking Type Quick Release Pneumatic Connector LSQ-HX In Brass / Steel

PARTNO. LS ￠D HEX1 A T d
LSQ-HX-KR-SF 52 30.2 24 12 G1/4 ￠8.3


Steel Valve Locking Type Quick Release Pneumatic Connector LSQ-HX In Brass / Steel

PARTNO. LP C CP A ￠T d
LSQ-HX-KR-PH 56 20.5 ￠16 30 9 ￠5


Steel Valve Locking Type Quick Release Pneumatic Connector LSQ-HX In Brass / Steel

PARTNO. LP ￠D HEX1 A T d
LSQ-HX-CO2-SF 52 30.2 24 12 G1/4 ￠8.3


Steel Valve Locking Type Quick Release Pneumatic Connector LSQ-HX In Brass / Steel

PARTNO. LS C CP A ￠T d
LSQ-HX-CO2-PH 56 20.5 ￠16 30 9 ￠5
